Micro TIG

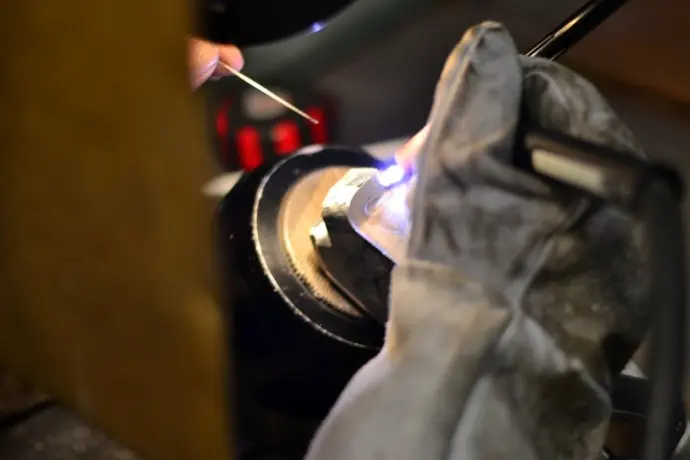

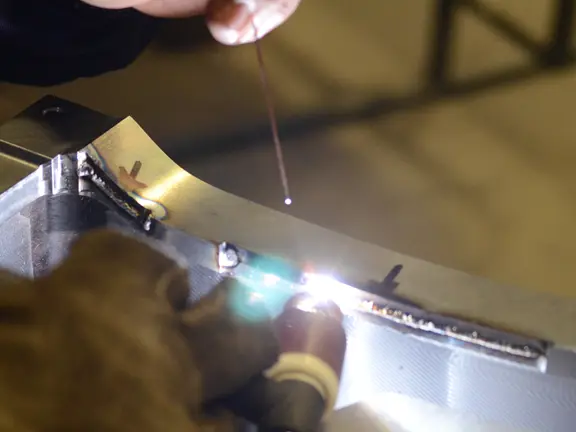

Micro TIG welding is performed under a high-powered microscope. This additive process utilizes sophisticated power sources that can produce very stable low amperage welding. Our technicians have 16+ years' experience with this process and 4-amp welds have been successfully accomplished. This process fits nicely between TIG welding and micro laser welding.


Capabilities

25 metric ton crane capacity

Experienced mold-finisher to hand work a surface after welding, and can perform parting line seal-off repair if requested

More than 30 different filler materials on-site

Spectrometer, for material chemical analysis, available to provide accurate colour matching using best available filler material

40x magnification microscope


Advantages

Minimal heat affected zone (HAZ) compared to TIG welding

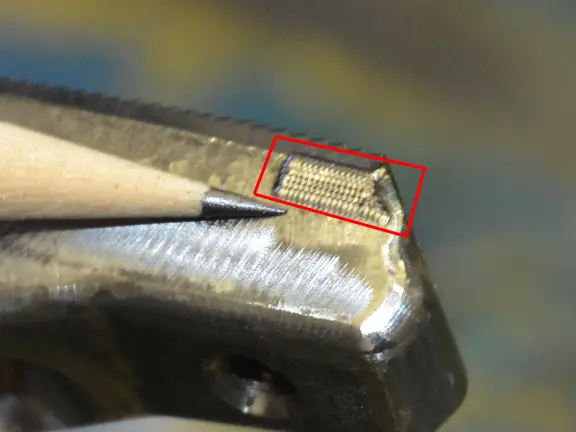

Controlled small deposits (0.002" - 0.005")

Minimizes warp, stress, and fatigue on metal

High-powered microscope allows the welder to achieve small and intricate weld deposits


Applications

Aerospace component repair and manufacturing

Plastic injection mold and component repair and engineering revisions

Machine component and critical part repair and manufacturing

Medical device repair and manufacturing
